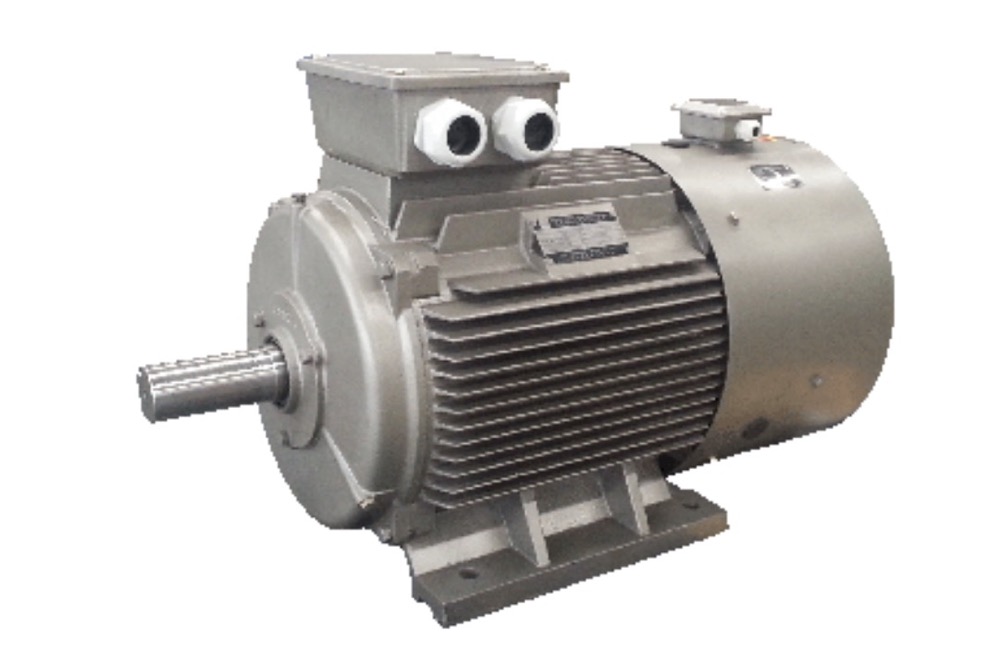

YVF2-80~355系列变频调速三相异步电动机

YVF2-80~355 Series Variable Frequency Three Phase Asynchronous Motor

概述	Summary
机座号：H80~H355	Frame Size: H80~H355
额定功率：0.55~315kW	Rated Power: 0.55~315kW
额定电压：380V	Rated Voltage: 380V
极数：2~6极	Poles: 2p,4p,6p
防护等级：IP54	Protection Degree: IP54
绝缘等级：F	Insulation Class: F
工作制：S1连续工作制	Duty: S1
变频范围：恒转矩：3~50Hz	Frequency range: constant torque: 3~50Hz
恒功率：2p：50~60Hz	constant power: 2p: 50~60Hz
4~6p：50~100Hz	4~6p: 50~100Hz
接法： ≤55kW: Y; ＞55kW: △	Connection: ≤55kW: Y; ＞55kW: △
冷却风机电压：380V	Cool fan motor voltage：380V
编码器：根据用户要求安装	Encoder：accordingto customer's requirement
外形及安装尺寸同YE2电机	Mounting dimensions are same as YE2 series
因独立风机电机的长度增加ΔL	Motor length increase by ΔL because of cool fan

结构特点 Structural characteristics

YVF2系列电动机采用高强度铸铁结构，具有可靠性高、调速范围宽、精度高等特点，安装尺寸和功率等级与JHM系列电机一致，互换性、适用性强。装有独立的冷却风机，保证电机在不同转速下均有良好的冷却效果。

The YVF2 series motors with high strengh cast iron structure, have the characteristics of high reliability, wide speed range, high precision, high interchangeability and applicability with JHM series motors because of their same power grade and mounting imension. The Y2VP series motors have independent cooling fan to ensure good cooling effect under different speed.
